Coverage Calculator
Pick a combination to see range.
U300 device to RFID tag max range estimate.
Max Cable Length
30 m
Minimum Range
4 m
Maximum Range
7 m
Total Max Range
37 m
Quick Schematic

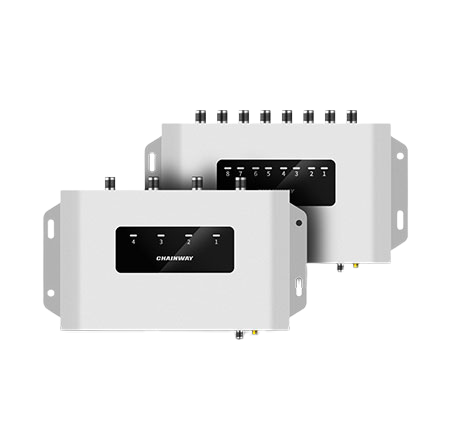

U300
LMR400 (30m max)
Antenna
9dBi
Read zone: 4m - 7m
RFID Tag
Standard tag
Reference Table
Cable
LMR400
Max Cable Length
30 m
Antenna
9dBi
Tag Type
Standard tag
Minimum Range
4 m
Maximum Range
7 m
Cable
LMR400
Max Cable Length
30 m
Antenna
9dBi
Tag Type
High quality tag
Minimum Range
6 m
Maximum Range
10 m
Cable
LMR400
Max Cable Length
30 m
Antenna
9dBi
Tag Type
Large RFID tag
Minimum Range
8 m
Maximum Range
12 m
Cable
LMR400
Max Cable Length
30 m
Antenna
12dBi
Tag Type
Standard tag
Minimum Range
6 m
Maximum Range
10 m
Cable
LMR400
Max Cable Length
30 m
Antenna
12dBi
Tag Type
High quality tag
Minimum Range
9 m
Maximum Range
14 m
Cable
LMR400
Max Cable Length
30 m
Antenna
12dBi
Tag Type
Large RFID tag
Minimum Range
11 m
Maximum Range
16 m
Cable
LMR600
Max Cable Length
50 m
Antenna
9dBi
Tag Type
Standard tag
Minimum Range
4 m
Maximum Range
7 m
Cable
LMR600
Max Cable Length
50 m
Antenna
9dBi
Tag Type
High quality tag
Minimum Range
6 m
Maximum Range
10 m
Cable
LMR600
Max Cable Length
50 m
Antenna
9dBi
Tag Type
Large RFID tag
Minimum Range
8 m
Maximum Range
12 m
Cable
LMR600
Max Cable Length
50 m
Antenna
12dBi
Tag Type
Standard tag
Minimum Range
6 m
Maximum Range
10 m
Cable
LMR600
Max Cable Length
50 m
Antenna
12dBi
Tag Type
High quality tag
Minimum Range
9 m
Maximum Range
15 m
Cable
LMR600
Max Cable Length
50 m
Antenna
12dBi
Tag Type
Large RFID tag
Minimum Range
11 m
Maximum Range
18 m
| Cable | Max Cable Length | Antenna | Tag Type | Minimum Range (m) | Maximum Range (m) |
|---|---|---|---|---|---|
| LMR400 | 30 | 9dBi | Standard tag | 4 | 7 |
| LMR400 | 30 | 9dBi | High quality tag | 6 | 10 |
| LMR400 | 30 | 9dBi | Large RFID tag | 8 | 12 |
| LMR400 | 30 | 12dBi | Standard tag | 6 | 10 |
| LMR400 | 30 | 12dBi | High quality tag | 9 | 14 |
| LMR400 | 30 | 12dBi | Large RFID tag | 11 | 16 |
| LMR600 | 50 | 9dBi | Standard tag | 4 | 7 |
| LMR600 | 50 | 9dBi | High quality tag | 6 | 10 |
| LMR600 | 50 | 9dBi | Large RFID tag | 8 | 12 |
| LMR600 | 50 | 12dBi | Standard tag | 6 | 10 |
| LMR600 | 50 | 12dBi | High quality tag | 9 | 15 |
| LMR600 | 50 | 12dBi | Large RFID tag | 11 | 18 |
